Tower:
Bell:

Diameter: 30"Cast by: From Reading in 1550
2Estimated weight: 5 - 0 - 17 (Based on model)
Nominal: Sharp of C by 14 cents (based on analysis by Wavanal)Documented note: C (Dove)

Inscriptions




Sancte # George # ora O K v







Trapezoids of bell shapes:

Photos:

History and Archive

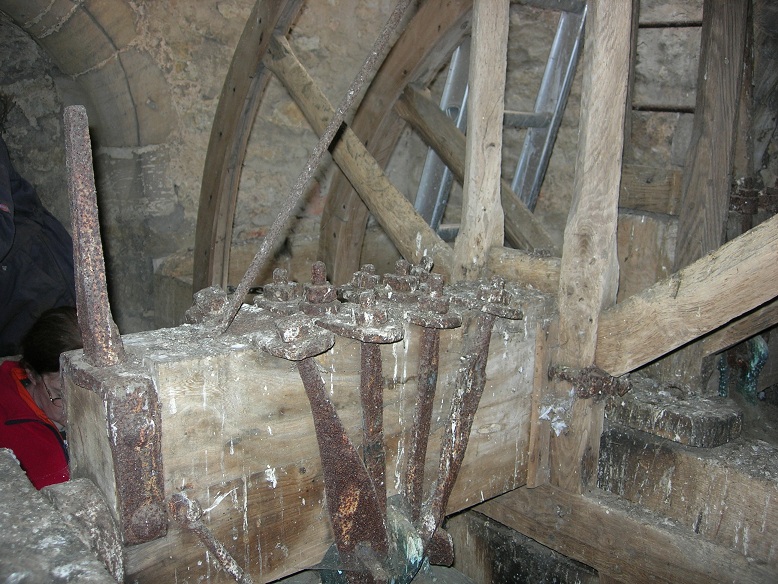

2nd Headstock
2010
History and Archive

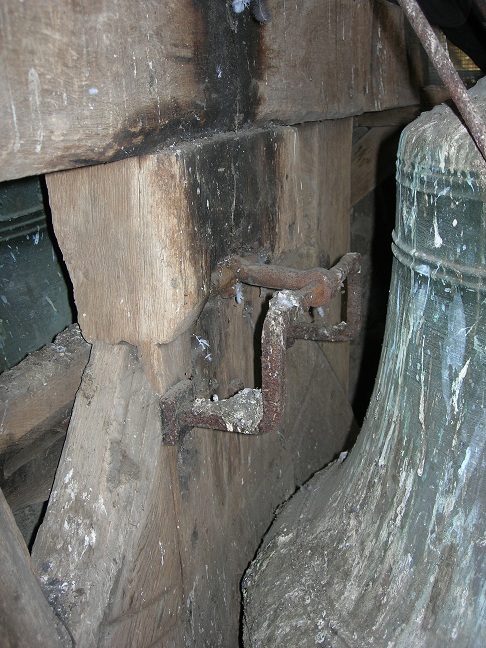

2nd Slider
2010
History and Archive

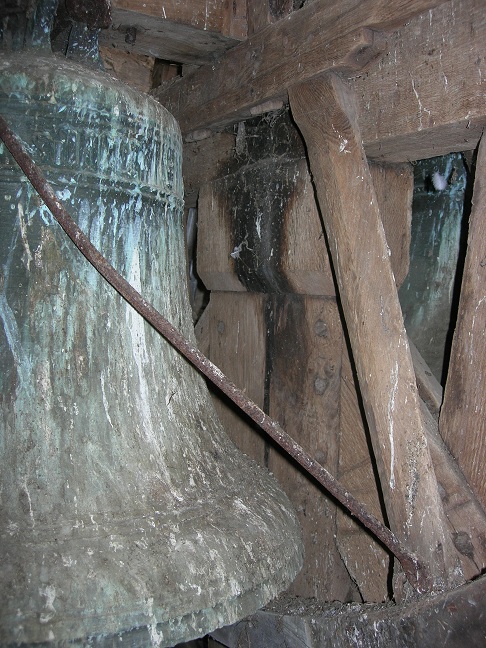

2nd bell
2010
History and Archive

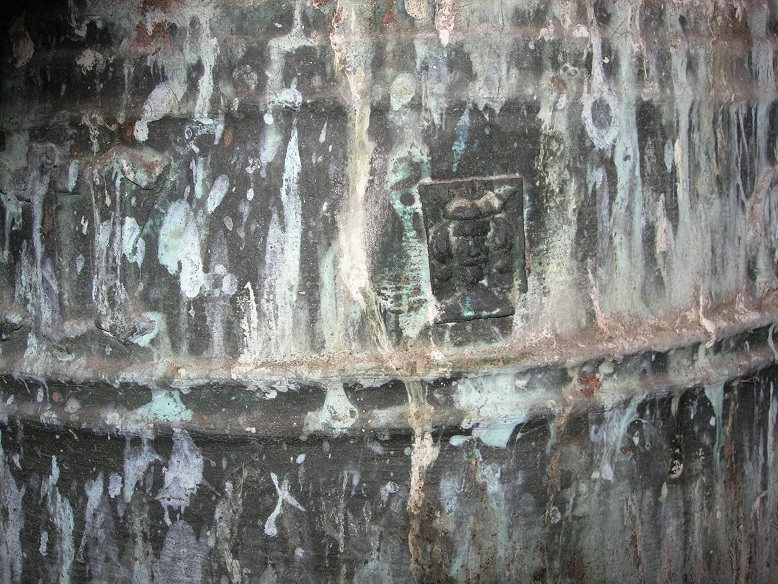

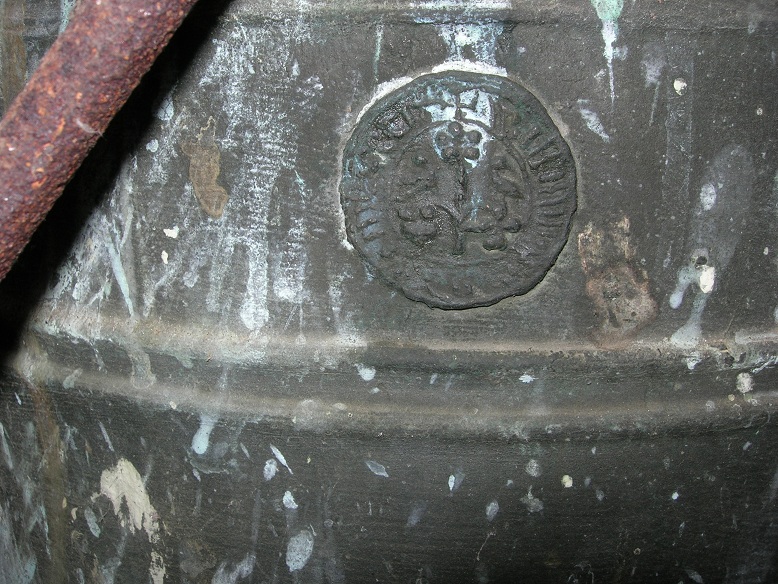

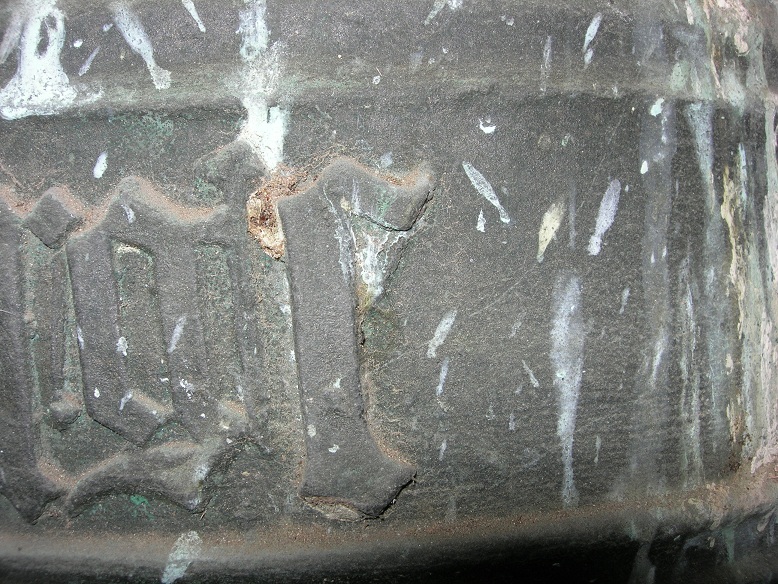

2nd Inscription
2010
History and Archive
2nd Inscription
2010
History and Archive
2nd Inscription
2010
History and Archive
2nd and 3rd from above
2010
History and Archive

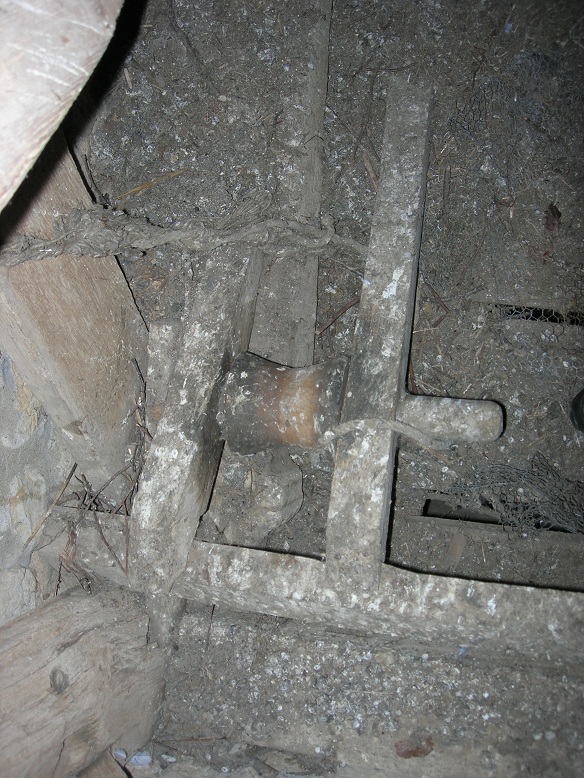

2nd Rope roller
2010
History and Archive

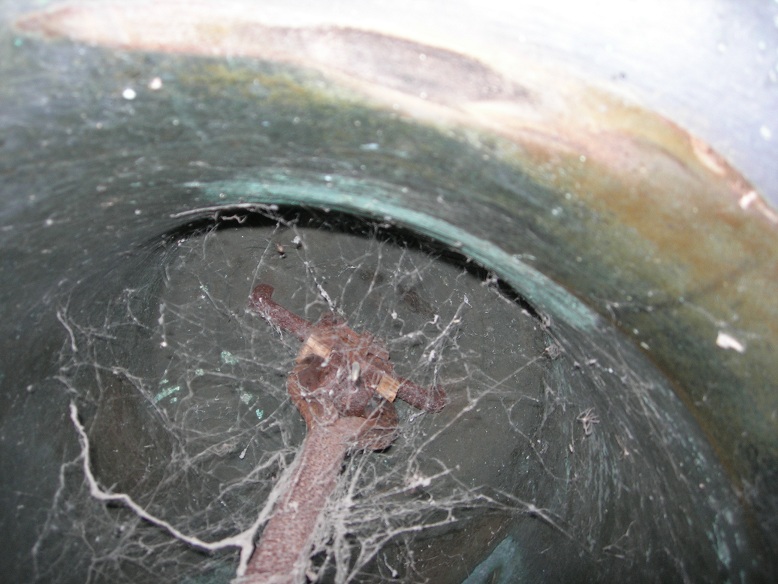

2nd Clapper
2010
History and Archive
2nd Headstock
2010
History and Archive
2nd Slider
2010
History and Archive
2nd bell
2010
History and Archive
2nd Inscription
2010
History and Archive
2nd Inscription
2010
History and Archive
2nd Inscription
2010
History and Archive
2nd and 3rd from above
2010
History and Archive
2nd Rope roller
2010
History and Archive
2nd Clapper
2010

Analysis of partial tones based on analysis by Wavanal:

Actual tuning of partialsVariation from Simpson tuning
Hum: 284Hz, which is Sharp of C#/Db by 7 cents                     Should be: 265 Hz
Prime: 534Hz, which is Sharp of C by 11 cents                     Should be: 530 Hz
Tierce: 650Hz, which is Flat of E by 9 cents                     Should be: 625 Hz
Quint: 838Hz, which is Sharp of G#/Ab by 7 cents                     Should be: 795 Hz
Nominal: 1060Hz, which is Sharp of C by 14 cents                     Should be: 1060 Hz
Upper Third: 1380Hz, which is Flat of F by 17 cents                     Should be: 1335 Hz
Upper Quint: 1572Hz, which is Sharp of G by 4 cents                     Should be: 1579 Hz
Upper Octave: 2158Hz, which is Flat of C#/Db by 59 cents                     Should be: 2109 Hz
