Radclive, St John Evangelist More-► Warning: Undefined array key "PREVIOUS" in /home/storage/062/4877062/user/htdocs/bells_banner.php on line 54 â—€ Back |
| Diameter: 33¼" | Cast by: Bartholomew Atton in 1594 |
| 3 | Estimated weight: 7 - 0 - 14 (Based on model) |
| Nominal: Sharp of B by 16 cents (based on analysis by Wavanal) | Documented note: B (Dove) |

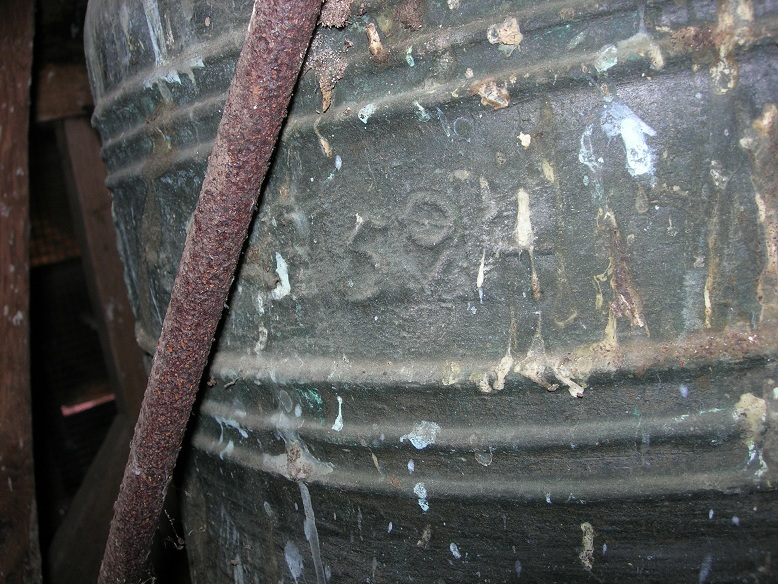

BARTHOLOMEWE # ATTVN + 1594 # | |
O O | |
Trapezoids of bell shapes: |
Photos:
|
Analysis of partial tones based on analysis by Wavanal: | |||||||||||||||||||||||
| Actual tuning of partials | Variation from Simpson tuning | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hum: 248Hz, which is Sharp of B by 1 cents | Should be: 251 Hz | ||||||||||||||||||||||
| Prime: 468Hz, which is Sharp of A#/Bb by 2 cents | Should be: 502 Hz | ||||||||||||||||||||||
| Tierce: 599Hz, which is Sharp of D by 12 cents | Should be: 592 Hz | ||||||||||||||||||||||
| Nominal: 1004Hz, which is Sharp of B by 16 cents | Should be: 1004 Hz | ||||||||||||||||||||||
| Upper Third: 1229Hz, which is Flat of D#/Eb by 16 cents | Should be: 1265 Hz | ||||||||||||||||||||||
| Upper Quint: 1498Hz, which is Sharp of F#/Gb by 18 cents | Should be: 1495 Hz | ||||||||||||||||||||||
| Upper Octave: 2054Hz, which is Flat of C by 39 cents | Should be: 1997 Hz | ||||||||||||||||||||||
|
