Corrections to analysis of bell harmonics at Wavendon and Great Linford - June 2022


BellDocumented NoteDocumented Note SourceRecorded NoteRecorded WeightEstimated WeightDiameterFounderMP3
5G#Weight BoardG#/Ab8 - 0 - 279 - 1 - 1036Gillett & Johnston in 1912

Inscriptions:

ROBERT ATTON MADE ME 1633 WE. RECAST BY GILLETT & JOHNSTON CROYDON 1912

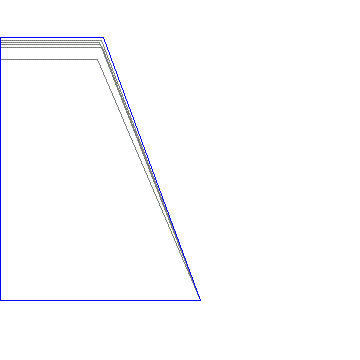

Trapezoids

How does the shape of this bell compare to others in the ring?


Here, the shape of all the bells are compared by reducing their size so they all have the same radius at the soundbow.
Then we can see if the founder made bells taller, wider or the same shape as different sized bells were created.

Tonal Analysis
Is this bell in tune with itself?
ToneFrequency (Hz)Tuning
Hum2108
Prime4180
Tierce51665
Quint6285
Nominal8360
Upper Third105110
Upper Quint1218-50
Upper Octave1658-15

This shows each harmonic relative to what it should be relative to the Nominal
taking Simpson Tuning as an ideal.
A positive figure shows that the harmonic is sharp, a negative figure shows that it is flat. There are 100 cents between notes on the scale.
Nominal:836Hz
Sharp of G#/Ab by 5 cents
