Corrections to analysis of bell harmonics at Wavendon and Great Linford - June 2022


BellDocumented NoteDocumented Note SourceRecorded NoteRecorded WeightEstimated WeightDiameterFounderMP3
3DRecordingD5 - 1 - 265 - 1 - 629½Abraham Rudhall 1 in 1712

Inscriptions:

QUOD SIT SACRA DIES PRIMO DENUNTIO MANE A:R 1712

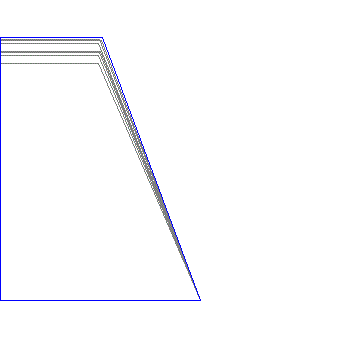

Trapezoids

How does the shape of this bell compare to others in the ring?


Here, the shape of all the bells are compared by reducing their size so they all have the same radius at the soundbow.
Then we can see if the founder made bells taller, wider or the same shape as different sized bells were created.

Tonal Analysis
Is this bell in tune with itself?
ToneFrequency (Hz)Tuning
Hum30572
Prime518-211
Tierce689-17
Quint89842
Nominal11700
Upper Third1407-67
Upper Quint17550
Upper Octave241957

This shows each harmonic relative to what it should be relative to the Nominal
taking Simpson Tuning as an ideal.
A positive figure shows that the harmonic is sharp, a negative figure shows that it is flat. There are 100 cents between notes on the scale.
Nominal:1170Hz
Flat of D by 5 cents
