Corrections to analysis of bell harmonics at Wavendon and Great Linford - June 2022


BellDocumented NoteDocumented Note SourceRecorded NoteRecorded WeightEstimated WeightDiameterFounderMP3
4CRecordingC6 - 2 - 106 - 2 - 632½Abraham Rudhall 1 in 1712

Inscriptions:

AD TEMPLUM PER ME POPULUS PROPERARE MONETUR 1712

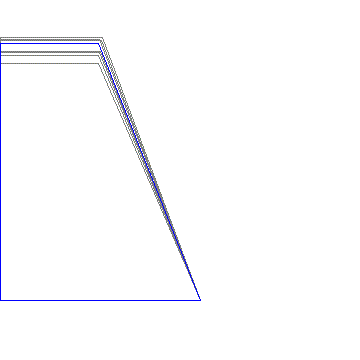

Trapezoids

How does the shape of this bell compare to others in the ring?


Here, the shape of all the bells are compared by reducing their size so they all have the same radius at the soundbow.
Then we can see if the founder made bells taller, wider or the same shape as different sized bells were created.

Tonal Analysis
Is this bell in tune with itself?
ToneFrequency (Hz)Tuning
Hum295212
Prime482-138
Tierce63026
Quint850144
Nominal10440
Upper Third1268-49
Upper Quint1538-31
Upper Octave20945

This shows each harmonic relative to what it should be relative to the Nominal
taking Simpson Tuning as an ideal.
A positive figure shows that the harmonic is sharp, a negative figure shows that it is flat. There are 100 cents between notes on the scale.
Nominal:1044Hz
Flat of C by 2 cents
