Corrections to analysis of bell harmonics at Wavendon and Great Linford - June 2022


BellDocumented NoteDocumented Note SourceRecorded NoteRecorded WeightEstimated WeightDiameterFounderMP3
4   4 - 2 - 204 - 2 - 2629¼M & S in 1981

Inscriptions:

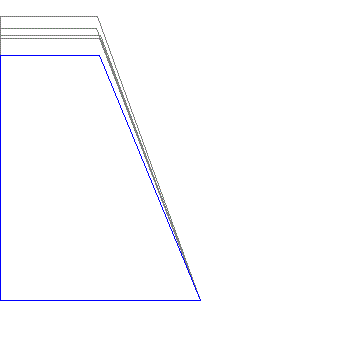

Trapezoids

How does the shape of this bell compare to others in the ring?


Here, the shape of all the bells are compared by reducing their size so they all have the same radius at the soundbow.
Then we can see if the founder made bells taller, wider or the same shape as different sized bells were created.

Photos

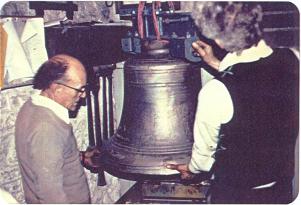

 The new 4th is hung
12
Tonal Analysis
Is this bell in tune with itself?
ToneFrequency (Hz)Tuning
Hum29379
Prime5600
Tierce68139
Quint87063
Nominal11200
Upper Third145365
Upper Quint1664-17
Upper Octave229038

This shows each harmonic relative to what it should be relative to the Nominal
taking Simpson Tuning as an ideal.
A positive figure shows that the harmonic is sharp, a negative figure shows that it is flat. There are 100 cents between notes on the scale.
Nominal:1120Hz
Sharp of C#/Db by 11 cents
