The Branch web site contains up to date information about ringing in North Bucks. Much of the information formerly in this site can now be found there.


Latest on this site:

Corrections to analysis of bell harmonics at Wavendon and Great Linford - June 2022


BellDocumented NoteDocumented Note SourceRecorded NoteRecorded WeightEstimated WeightDiameterFounderMP3
1  C1 - 3 - 141 - 3 - 1019½Taylor in 1992

Inscriptions:

Margaret A. Foord 1908-1991
Eric C. J. Foord 1904-1985
Emberton, Bucks.

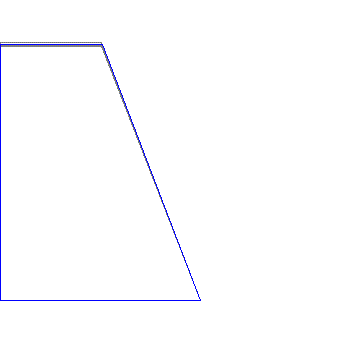

Trapezoids

How does the shape of this bell compare to others in the ring?


Here, the shape of all the bells are compared by reducing their size so they all have the same radius at the soundbow.
Then we can see if the founder made bells taller, wider or the same shape as different sized bells were created.

Tonal Analysis
Is this bell in tune with itself?
ToneFrequency (Hz)Tuning
Hum521-10
Prime10527
Tierce12528
Quint15744
Nominal20960
Upper Third26328
Upper Quint3072-40
Upper Octave4154-16

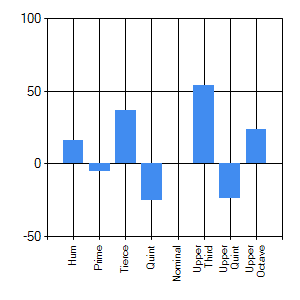

This shows each harmonic relative to what it should be relative to the Nominal
taking Simpson Tuning as an ideal.
A positive figure shows that the harmonic is sharp, a negative figure shows that it is flat. There are 100 cents between notes on the scale.
Nominal:2096Hz
Sharp of C by 3 cents
