Corrections to analysis of bell harmonics at Wavendon and Great Linford - June 2022


BellDocumented NoteDocumented Note SourceRecorded NoteRecorded WeightEstimated WeightDiameterFounderMP3
2EWeight BoardD#/Eb6 - 2 - 235 - 2 - 2530½Whitechapel in 2008

Inscriptions:

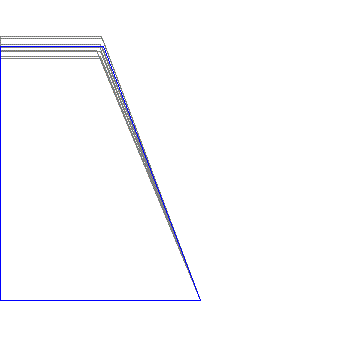

Trapezoids

How does the shape of this bell compare to others in the ring?


Here, the shape of all the bells are compared by reducing their size so they all have the same radius at the soundbow.
Then we can see if the founder made bells taller, wider or the same shape as different sized bells were created.

Photos

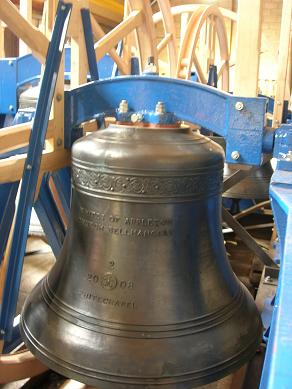

 The new 2nd at Appleton.
Tonal Analysis
Is this bell in tune with itself?
ToneFrequency (Hz)Tuning
Hum16874
Prime3220
Tierce38823
Quint49234
Nominal6440
Upper Third774-68
Upper Quint97618
Upper Octave12925

This shows each harmonic relative to what it should be relative to the Nominal
taking Simpson Tuning as an ideal.
A positive figure shows that the harmonic is sharp, a negative figure shows that it is flat. There are 100 cents between notes on the scale.
Nominal:644Hz
Flat of E by 15 cents
