Corrections to analysis of bell harmonics at Wavendon and Great Linford - June 2022


BellDocumented NoteDocumented Note SourceRecorded NoteRecorded WeightEstimated WeightDiameterFounderMP3
7GWeight BoardG10 - 1 - 711 - 1 - 1340Henry Bagley in 1699

Inscriptions:

THOMAS MARTAINE AND RICHARD PHESANT CHVRCHWARDENS HENRY BAGLEY MADE MEE 1699

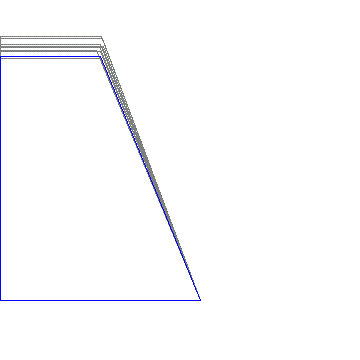

Trapezoids

How does the shape of this bell compare to others in the ring?


Here, the shape of all the bells are compared by reducing their size so they all have the same radius at the soundbow.
Then we can see if the founder made bells taller, wider or the same shape as different sized bells were created.

Photos
 The inscription on the 7th
Tonal Analysis
Is this bell in tune with itself?
ToneFrequency (Hz)Tuning
Hum192-2
Prime384-2
Tierce46425
Quint564-37
Nominal7690
Upper Third99153
Upper Quint1138-23
Upper Octave156631

This shows each harmonic relative to what it should be relative to the Nominal
taking Simpson Tuning as an ideal.
A positive figure shows that the harmonic is sharp, a negative figure shows that it is flat. There are 100 cents between notes on the scale.
Nominal:769Hz
Flat of G by 15 cents
